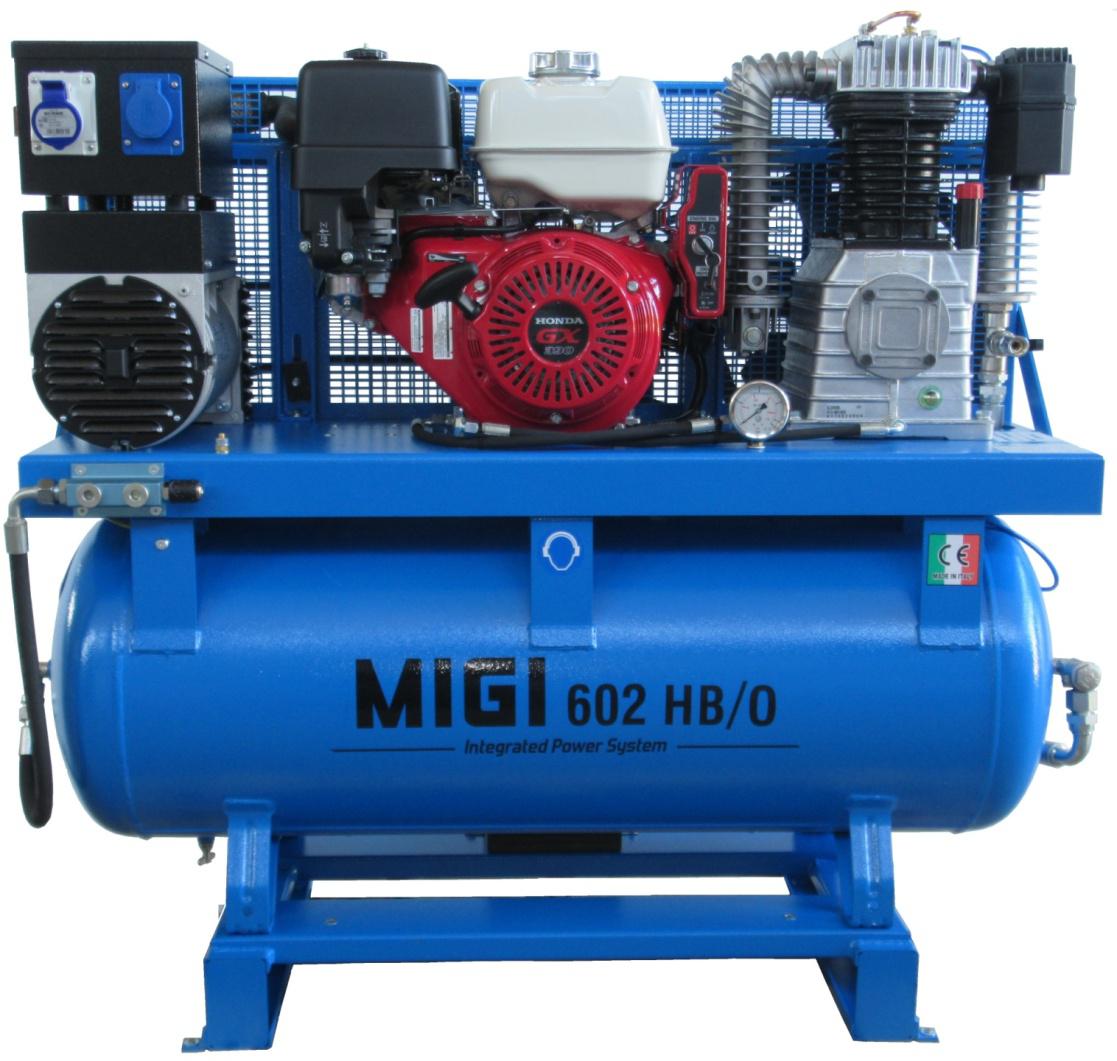

Engine: HONDA mod. GX 390
Rated Power / RPM: 6.4 Kw (8.6 HP) / 3,000 rev/min
Engine: LONCIN mod. G 420
Rated Power / RPM: 7.5 Kw (10.1 HP) / 3,000 rev/min
Fuel: Petrol
Fuel Tank: 6.1 l
Fuel Consumption: 2.5 l/h
Ignition: Electric
Cooling: Forced Air
Fume Exhaust: Positioned on the right side
GENERATOR
Alternator: 115/230 V Single-Phase
Alternator: 400 V Three-Phases (Optional)
Power / Frequency: 5.0 kVA / 50 Hz (Single-Phase)
Power / Frequency: 6.0 kVA / 50 Hz (Three-Phases + Single-Phase)
Power with AUX Service: 1.0 kVA
COMPRESSOR
Compressor: Twin-Cylinder
Revolutions per Minute (RPM): 1,150 rev/min
Air production: 870 l/min – 52.2 m³/h
Max Pressure: 11 bar – 160 PSI
Tank (Steel): 150 l
GENERAL FEATURES
Dimensions L x W x H: 1,300 x 500 x 1,150 mm
Weight: 210 kg
Protection Class: IP 23
